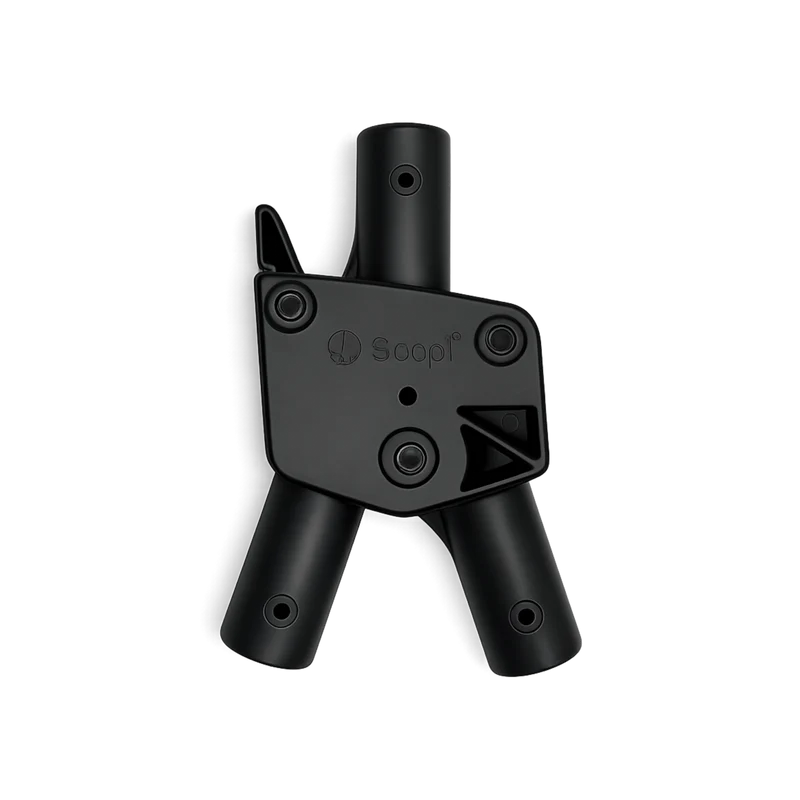

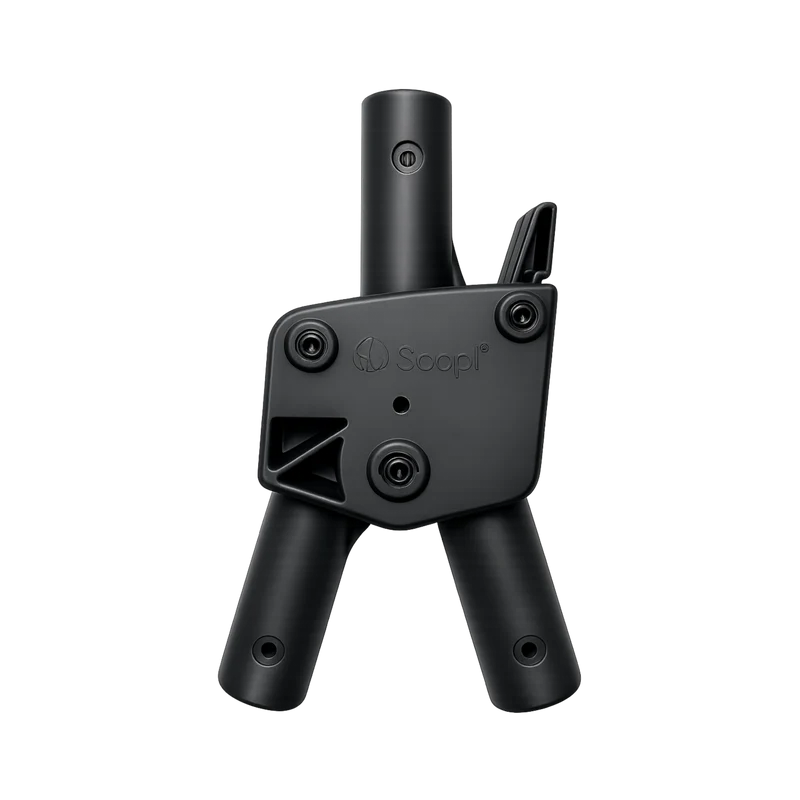

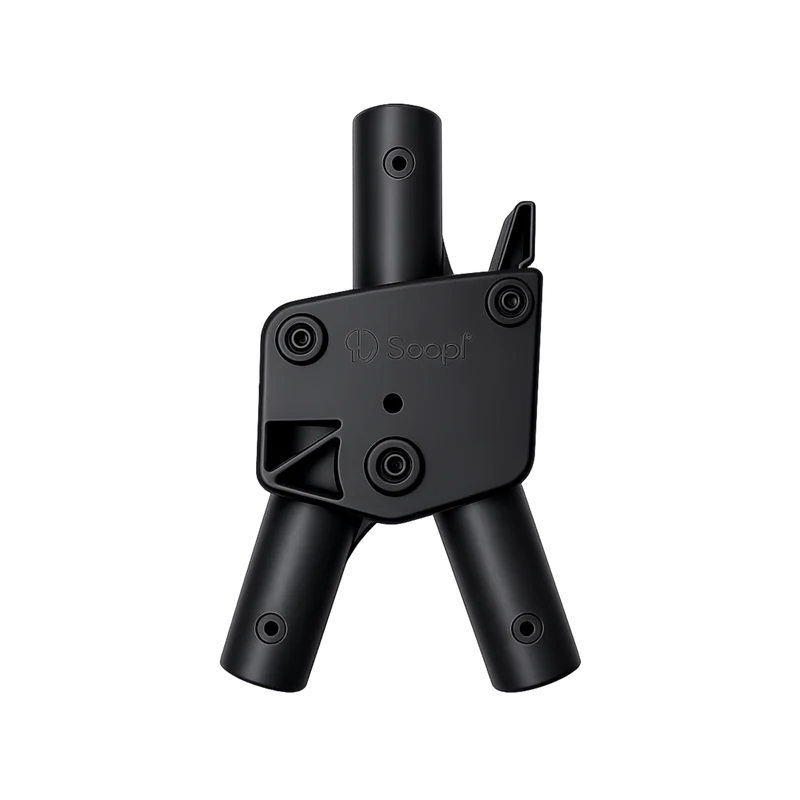

Soopl Middle Joint

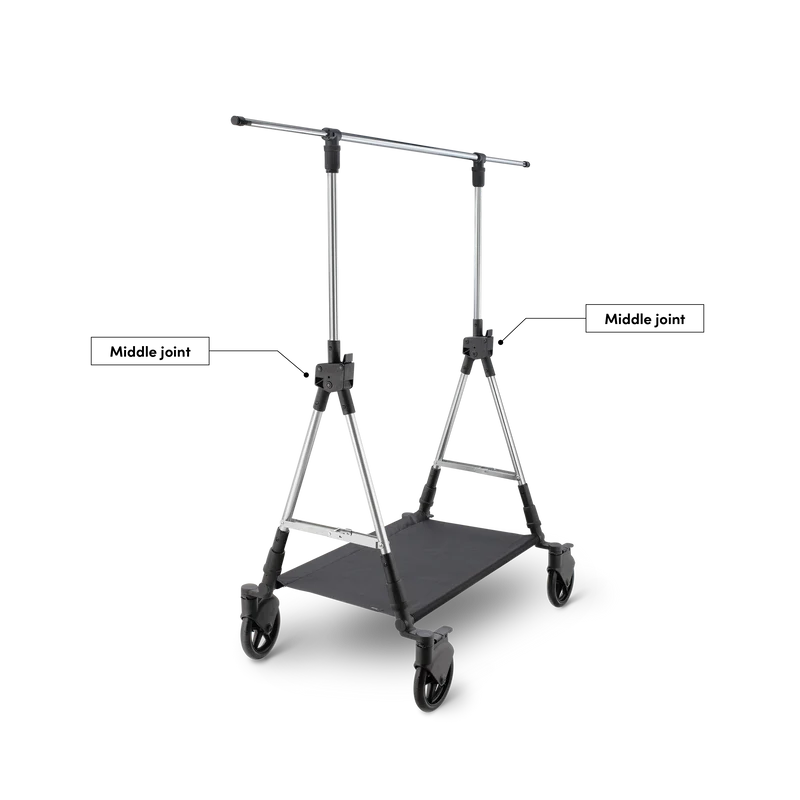

Spare part for your Soopl Fashion Trolley. Read below to find out which tools you need for installation.

If you’re unsure whether this is the correct spare part or if you might need something else, please contact Soopl so we can check this with you.

To replace this part, you will need to drill out the old rivets using a drill with a metal drill bit. Once removed, you can take off the old middle joint and position the new one in place.
Tip: make sure the handle (used to fold the trolley) is aligned in the same direction as the other middle joint.

Finally, secure the new middle joint using the included rivets. For this, you will need the rivet gun.

Tools required:

• Drill
• 3 mm metal drill bit
• Rivet gun
• The required black rivets are included with this spare part.

Included:

• Middle joint
• Rivets
